Customized Engineering Machinery Hand Throttle Joystick Control Cablel Lever

Customized Engineering Machinery Hand Throttle Joystick Control Cablel Lever

  • Evidenziare

    throttle control cable

    ,

    gear shift selector cable

  • Nome
    Leva su misura di Cablel di controllo della leva di comando del comando di mano del macchinario di i
  • Applicazioni
    Vedi i diversi comandi manuali
  • Materiale
    Lo zinco ha basato il corpo fuso sotto pressione, componenti interno/esterno d'acciaio placcate
  • Codice di HS
    87084050/87084020
  • Pacchetto
    film di legno della bolla di /carton/ di caso
  • Caratteristiche
    Vedi i diversi comandi manuali
  • Luogo di origine
    La Cina
  • Marca
    PHIDIX
  • Certificazione
    IATF16949
  • Numero di modello
    Su misura
  • Quantità di ordine minimo
    1 Piece / Pieces
  • Prezzo
    Negotiation
  • Imballaggi particolari
    Cassa di legno o del cartone
  • Tempi di consegna
    7-40 giorni del lavoro
  • Termini di pagamento
    L/C, D/A, D/P, T/T
  • Capacità di alimentazione
    888 pezzo/pezzi al mese

Customized Engineering Machinery Hand Throttle Joystick Control Cablel Lever



Customized Engineering Machinery Hand Throttle Joystick Control Cablel Lever



【 Applications 】

• See individual hand controls



【 Suggested  End Fittings

• Rod Ends

• Clevises

【 Features 】

• See individual hand controls



【 Material 】

• Zinc Based Die-Cast Body

• Plated Steel Internal/External Components



【 Hand Control Industrial 】

Custom hand controls are available to meet a variety of needs. These levers and joysticks can be used with push-pull controls for many applications including truck mixer, vibrator control, remote valve actuation, drive engagement and automatic pick-up hitch systems.



【 CH980 】

Customized Engineering Machinery Hand Throttle Joystick Control Cablel Lever 0



Description:

Single axis hand control for use with push-pull controls, allows easy connection to input end for remote valve actuation, drive engagement, articulation lock and many more.



Applications:

Boom lock

Drive engagement

Remote valve actuation



Features:

5:1 Mechanical advantage

For use on LD or MD cable assemblies

Rugged construction

Easy grip large molded handle

Easy mount base



Other Related Products:

CH900 Series Unistak

CH980 Series Lever

CH650 Joystick



Materials:

Primarily plated steel

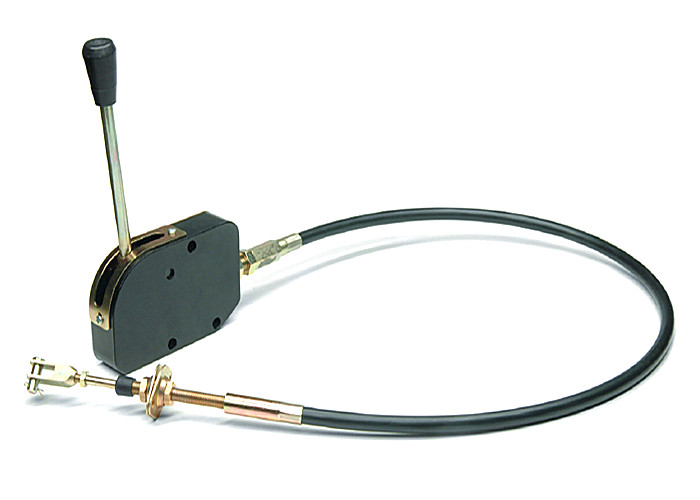

【 Direct Lever CH150 】

An operator to impart light to medium tension or compression (push-pull) loads through flexible or rigid conduits. This lever is designed primarily for P.T.O. applications on commercial and industrial vehicles. It can also be used for gear selection, valve operation and hand throttle applications, as well as many specialist requirements.

Customized Engineering Machinery Hand Throttle Joystick Control Cablel Lever 1

【 Valve Lever Single Axis 165-041-002 】

Customized Engineering Machinery Hand Throttle Joystick Control Cablel Lever 2

Description:

Single axis hand control for use with push-pull controls, allows easy connection to input end for remote valve actuation, drive engagement, articulation lock and many more.



Applications:

Boom lock

Drive engagement

Remote valve actuation



Features:

5:1 Mechanical advantage

For use on LD or MD cable assemblies

Rugged construction

Easy grip large molded handle

Easy mount base



Other Related Products:

CH900 Series Unistak

CH980 Series Lever

CH650 Joystick



【 Joystick Multi Axis 165-038-199 】

Customized Engineering Machinery Hand Throttle Joystick Control Cablel Lever 3

Description:

Multi axis hand control for use with push-pull controls, allows easy connection to input end for remote valve actuation, drive engagement and many more.



Applications:

Boom lock

Drive engagement

Remote valve actuation



Features:

5:1 Mechanical advantage

For use on LD or MD cable assemblies

Rugged construction

Easy grip large molded handle

Easy mount base



Other Related Products:

CH900 Series Unistak

CH980 Series Lever

CH650 Joystick

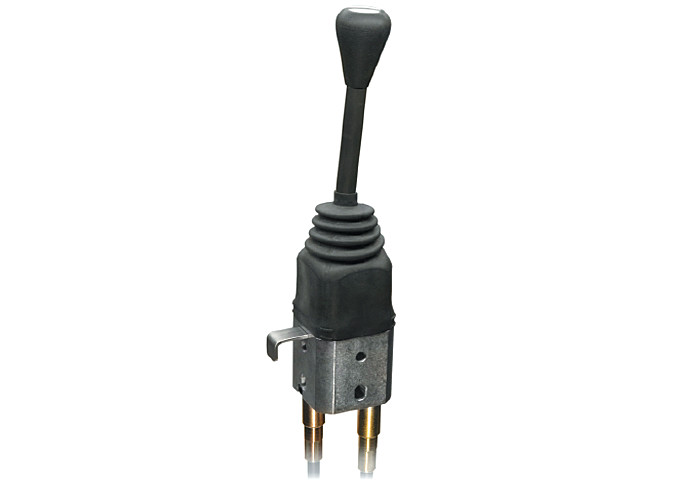

【 Joystick Assembly Multi Axis CH650 】

Customized Engineering Machinery Hand Throttle Joystick Control Cablel Lever 4

Description:

Multi axis control lever operator assembly. This control head is designed for independent operation of two hydraulic spool valves.



Applications:

Remote valve actuation



Features:

Varied locking functions for cable control

Simple cable replacement capability

Robust internal linkages

Possibility of electronic functions



Other Related Products:

CH900 Series Unistak

CH980 Series Lever

Cablecraft® LD and 4B 1/4" M6 Series Cables



【 Leverstak CH400M 】

The Leverstak control head is designed to extensively cover the agricultural equipment market. One of its major uses today is in the operating of tractor automatic pick-up hitch systems; also, it can be used as an alternative to the Unistak CH900 system where the “in line” action of the hydraulic spool valve can be maintained. Any number of operators may be secured together by studs which may also be used to mount the control onto the machine.

Customized Engineering Machinery Hand Throttle Joystick Control Cablel Lever 5

Description:

Leverstak hand control



Applications:

Automatic pick-up hitch release control cable operation

Power take off engagement/disengagement



Features:

High lever to cable movement ratios



Other Related Products:

Non-locking “T” handle direct pull cable control can also be used for similar applications
