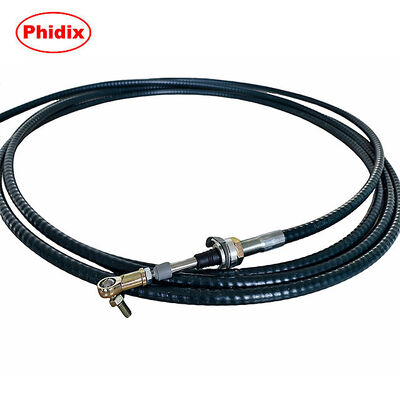

Mechanical Control Cable Push-Pull Control Cable Assembly With Ball Joint Ends

The push-pull control cable with ball joint ends is a flexible mechanical control solution designed for precise linear motion transmission in remote control systems. Featuring spherical ball joint end fittings on both ends, this cable assembly accommodates angular misalignment and dynamic movement while maintaining smooth and reliable push-pull operation. Constructed with a high-strength inner core and a reinforced outer conduit, the cable ensures low friction, minimal backlash, and long service life, even in harsh or high-vibration environments. The integrated ball joints provide enhanced flexibility, reduced wear, and improved system reliability, making this control cable ideal for demanding industrial and mobile applications.

【 Applications 】

• Automotive and commercial vehicles

• Construction and engineering machinery

• Agricultural equipment

• Industrial machinery and automation systems

• Material handling equipment

• Rail transportation systems

• Marine and offshore equipment

• Military and special-purpose vehicles

【 Features 】

• Ball joint ends allow angular movement and misalignment

• Smooth and precise push-pull motion transmission

• High-strength inner core for reliable load handling

• Reinforced outer conduit for durability and wear resistance

• Reduced friction and minimal backlash

• Suitable for high-vibration and dynamic environments

【 Advantages 】

• Improves system flexibility and installation tolerance

• Reduces stress on cable and linkage components

• Enhances durability and service life

• Provides stable and accurate motion control

• Simplifies installation and alignment

• Supports custom design for specific applications

【 Working Principle 】

The push-pull control cable transmits linear motion from an input control device, such as a lever or pedal, to a remote mechanical component. When force is applied, the inner core moves longitudinally within the outer conduit to push or pull the connected mechanism.The ball joint end fittings allow the cable to articulate freely, compensating for angular misalignment and movement during operation. This reduces side loading and wear, ensuring smooth motion transmission and consistent performance over extended service life.

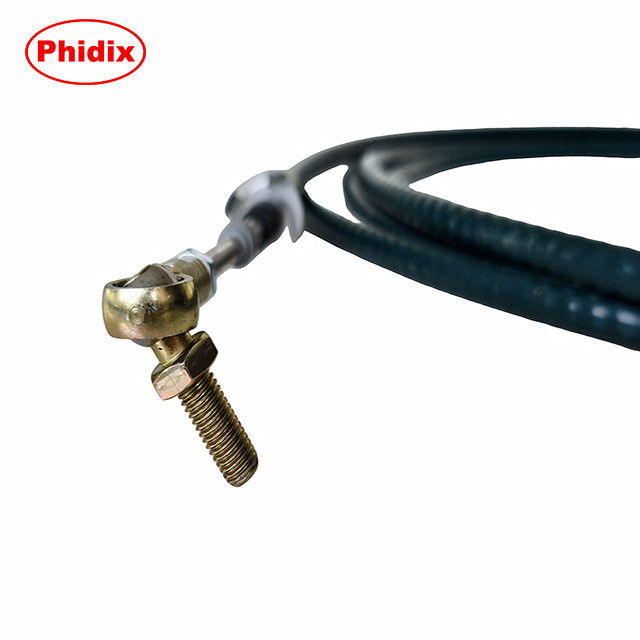

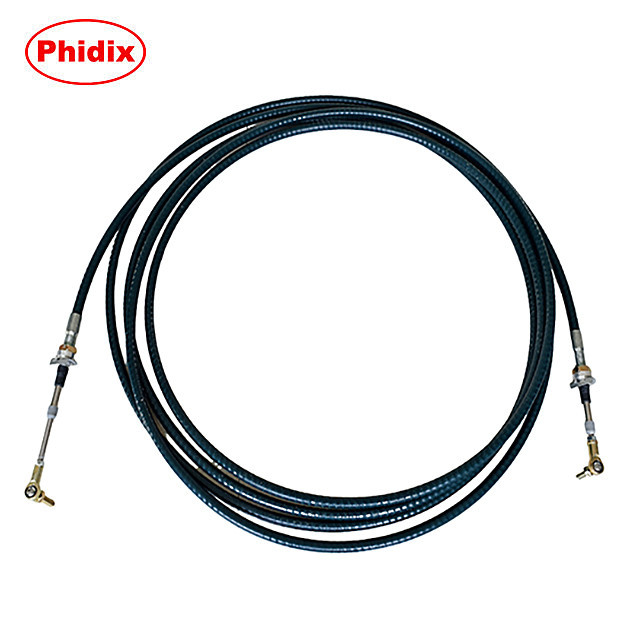

【 Real Picture 】
